Vertikal VRTABL14D Articulated Boom Lift

Vertikal Articulating Boom Lifts are divided into two types: battery powered and diesel engine with a maximum working height from 14m to 47.3m. Our articulated boom lifts are CE certified. The main components belong to internationally recognized brands. The cordless articulated boom lifts are suitable for indoor use as they operate quietly. There is a manual emergency landing system that can allow the machine to operate normally when the power is cut off. Diesel engine articulated lifts have a patented technology weight measuring device that can make full weighing to prevent malfunction.

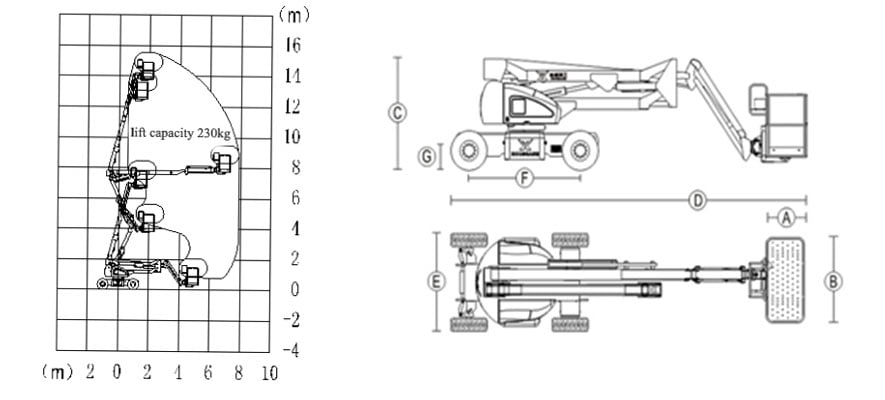

Working Height Maximum16.05m
Platform Height Maximum14.05m
Working radius maximum8.1m
Lift capacity230kg
Crossing height maximum7.6m
Length( stowed)  Ⓓ6.24m
Width (stowed)  Ⓔ1.75m
Height(stowed) Ⓒ2m
Wheel base Ⓕ2m
Ground clearance  Ⓖ0.2m
Platform measurement  Ⓑ*Ⓐ1.53*0.76*1.1m
Tail swing0m
Turning radius Minimum4.5m
Travel speed(stowed)5km/h
Travel speed(raised or extended)0.8km/h
Solid tire28*9-15
Swing speed0~0.8rpm
Turntable swing360° Continuous
Platform levellingAutomatical levelling
Platform rotation180°
Hydraulic tank volume70L
Total weight6780kg
Control voltage24V
Travel electric motor6.5*2kw
Battery8*6/420 V/Ah
Charger48/40 V/A
