Vertikal VRTABL20A Articulated Boom Lift

Vertikal Articulating Boom Lifts are divided into two types: battery powered and diesel engine with a maximum working height from 14m to 47.3m. Our articulated boom lifts are CE certified. The main components belong to internationally recognized brands. The cordless articulated boom lifts are suitable for indoor use as they operate quietly. There is a manual emergency landing system that can allow the machine to operate normally when the power is cut off. Diesel engine articulated lifts have a patented technology weight measuring device that can make full weighing to prevent malfunction.


ModelVRTABL20 to
Maximum Working Height22m
Platform Height Maximum20m
Maximum working radius12.4 m
Lifting capacity230kg
Transition height maximum9.2m

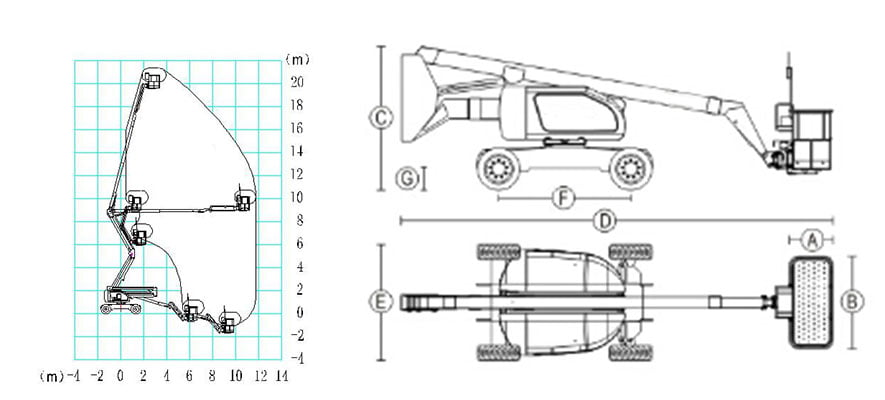

Length (stacked) Ⓓ9.07
Width (stacked) Ⓔ2.38
Height (stacked) Ⓒ2.49m
Wheel base Ⓕ2.6m
Ground clearance Ⓖ430mm
Platform measurement     *  1.83 * 0.76 M
Tail turn3.0m
Turning radius Minimum5.2
Driving speed (stacked)6.3km / h (2WD); 4.2km / h (4WD)
Driving speed (raised or extended)1.1km / h
Climbing Ability30% (2WD); 4.2km / h (4WD)
Solid tire
Return speed0 ° 0.8rpm
Rotary table swing360 ° Continuous
Platform levelingAutomatic leveling
Platform rotation± 80 °
Hydraulic tank volume100L
Total weight9000kg (2WD); 9200kg (4WD)
Control voltage12v
Driving and steering type4 * 2 * 2, 4 x 4 x 2
EngineCummins B2.8-C58; Yanmar (4TNV94L-BXPHZ)
Rated power45kW / 2200
