| MODEL | VRT10-DS |  |
| working height maximum | 12m |
| platform height maximum | 10m |
| Lift capacity | 1150kg |
| Lift capacity (extension deck) | 230kg |

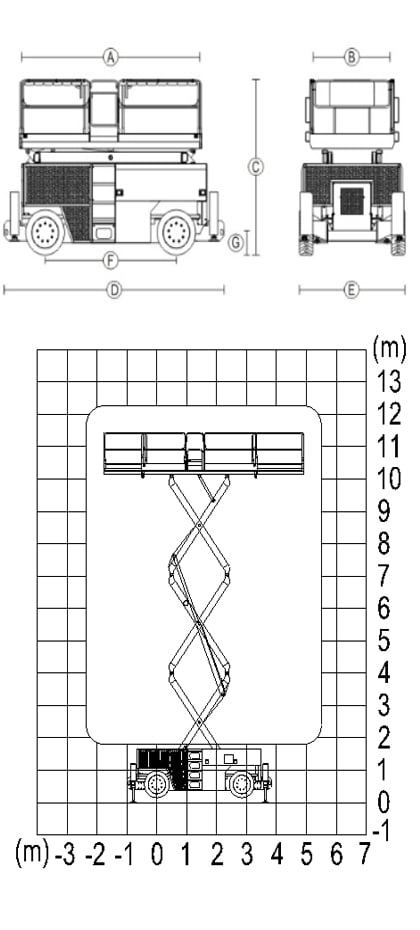

| Length(without/with outriggers) Ⓓ | 4.2/4.8m |
| Width Ⓔ | 2.28m |
| Height(stowed) Ⓒ | 2.81m |
| Wheel base Ⓕ | 2.84m |
| Ground clearance-center Ⓖ | 0.23m |
| Platform measurement Ⓑ*Ⓐ | 3.95*1.83m |
| Extension deck measurement | 1.22*1.52m |
| Turning radius minimum | 2.78/4.95m |
| Travel speed(stowed) | 6.3km/h |
| Travel speed(raised) | 1.1km/h |
| Gradeability | 50% |
| Solid tire | 33*12-20 |
| Weight | 5850kg |
| Fuel tank volume | 115L |
| Hydraulic tank volume | 170L |
| Drive mode | 4*4*4 |
| Steering wheel number | 4 |
| Engine | Yanmar 4TNV94L-BXPHZX Perkins 404D-22 |
| Rated power | 35.5KW/38KW |
