Vertikal VRT16-DS

Description

MODELVRT16-DS
working height maximum18m
platform height maximum16m
Lift capacity680kg
Lift capacity (extension deck)230kg

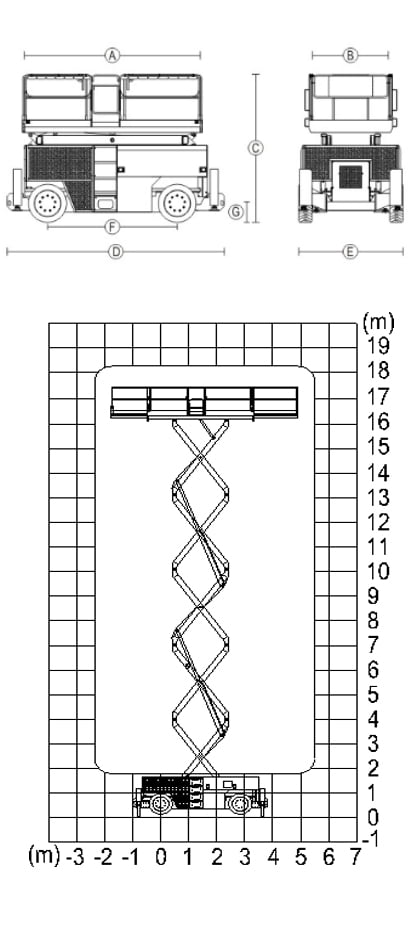

Length(without/with outriggers) Ⓓ4.2/4.81m
Width Ⓔ2.28m
Height(stowed) Ⓒ3.25m
Wheel base Ⓕ2.84m
Ground clearance-center Ⓖ0.23m
Platform measurement Ⓑ*Ⓐ3.95*1.83m
Extension deck measurement1.22*1.52m
Turning radius minimum4.95m
Travel speed(stowed)6.3km/h
Travel speed(raised)1.1km/h
Gradeability40%
Solid tire33*12-20
Weight7850kg
Fuel tank volume115L
Hydraulic tank volume170L
Drive mode4*4*4
Steering wheel number4
EngineYanmar 4TNV94L-BXPHZX/Perkins 4D4D-22
Rated power36.3KW
