Description

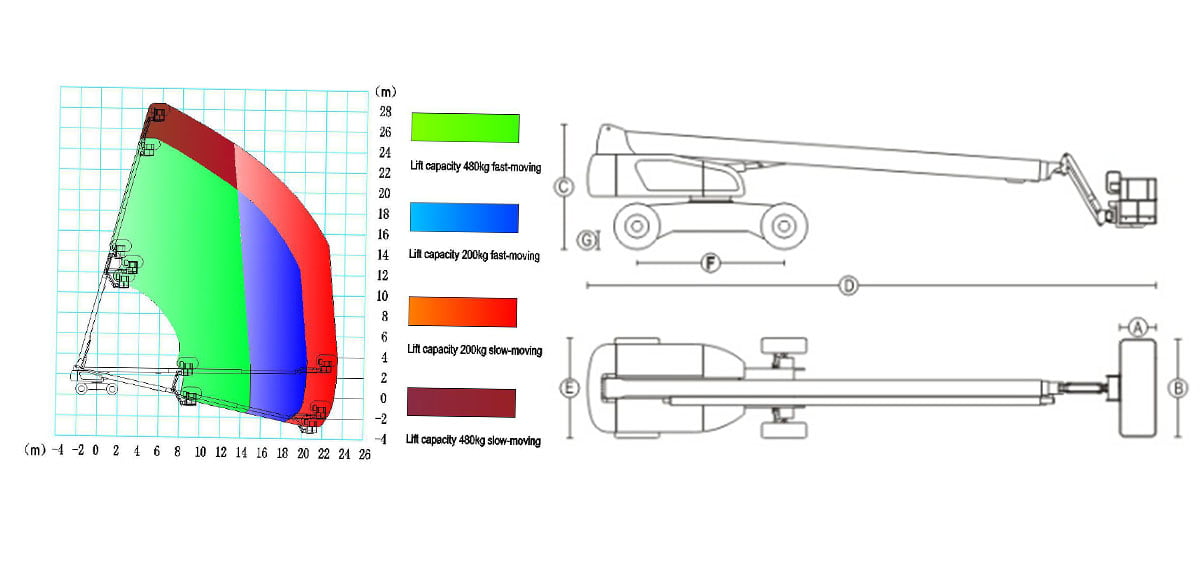

| Model | VRTB27L |
| Working Height Maximum | 28.7m |
| Platform Height Maximum | 26.7m |
| Working radius maximum | 23.4m |
| Lift capacity(restricted) | 480kg |
| Lift capacity(non-restricted) | 340kg |
| Length(stowed)Ⓓ | 12.46m |
| Width Ⓔ | 2.58m |
| Height(stowed) Ⓒ | 2.8m |
| Wheel base Ⓕ | 3.0m |
| Ground clearance-center Ⓖ | 280mm |
| Platform measurement(m) Ⓑ*Ⓐ | 2.44*0.91m |
| Turning radius-inside | 3.59m |
| Turning radius-outside | 6.25m |
| Travel speed(stowed) | 5.3km/h |
| Travel speed(raised ) | 1.1km/h |
| Gradeability-stowed | 45% |
| Solid tire | 385/65-22.5 |
| Swing speed | 0-1/3rpm |
| Turntable swing | 360° Continuous |
| Platform levelling | Automatical |
| Platform rotation | ±80° |
| Fuel tank capacity | 151L |
| Total weight | 16540kg |
| voltage | 24v |
| Drive & steering type | 4*2*2 |
| engine | Cummins QSF2.8T-C71 |
| Rated power | 53kw/2200rpm |
