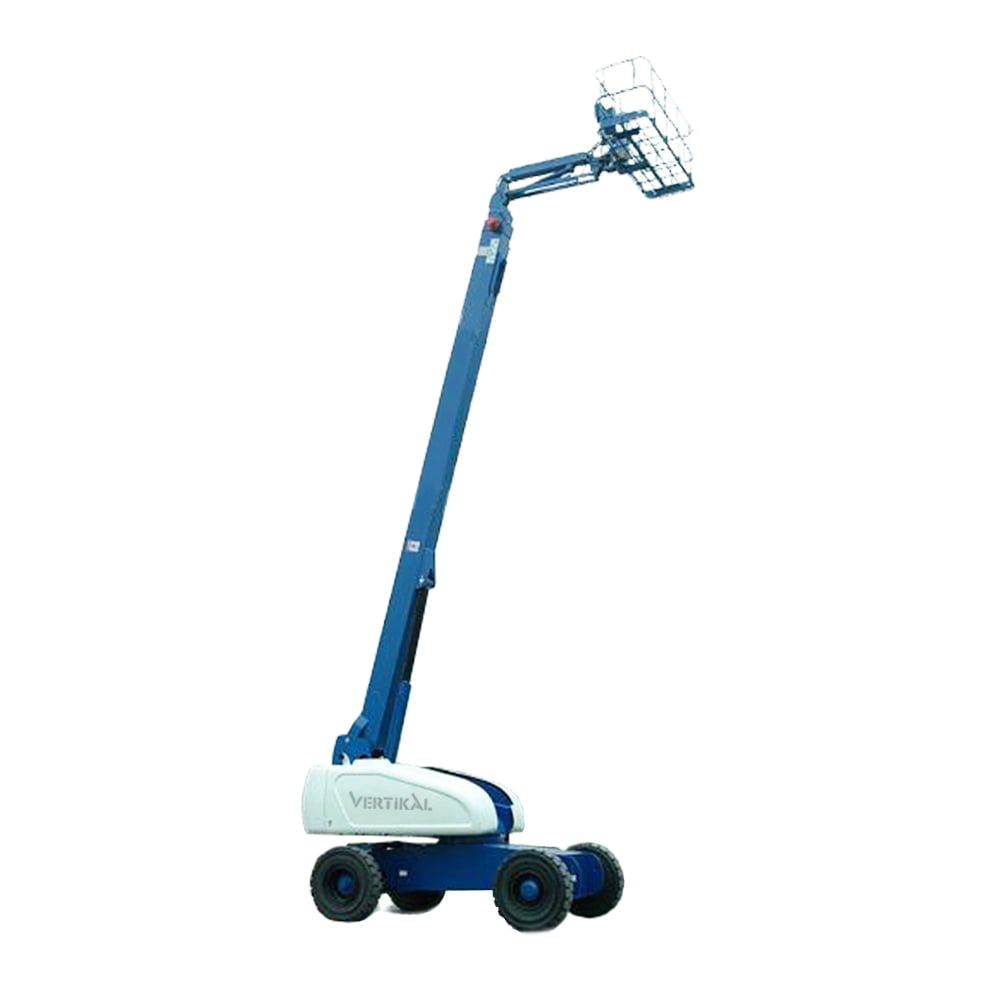

Vertikal VRTB38L Telescopic Boom

Vertikal Telescopic Boom Lift

Vertikal self-propelled Telescopic Boom Lifts have a working height range of 18m to 44m, and all models are configured with European CE safety approved, premium branded main components. Vertical Telescopic Boom Platforms offer powerful diesel engine, excellent performance, high capacity, comfortable use, safety and reliability.

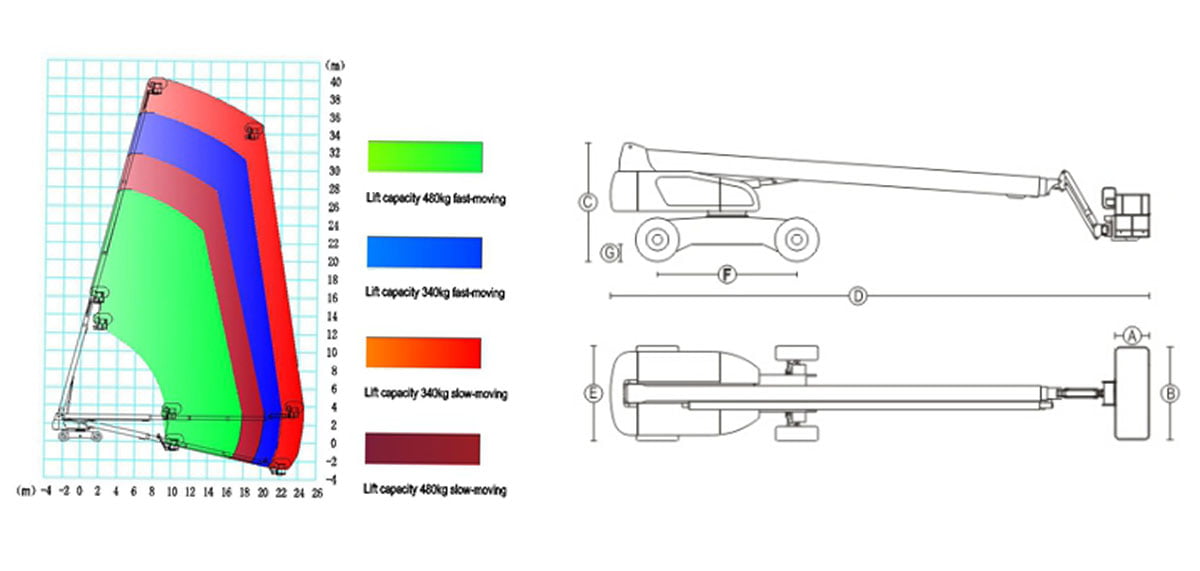

Working Height Maximum40.4m
Platform Height Maximum38.4m
Working radius maximum24.4m
Lift capacity(restricted)480kg
Lift capacity(non-restricted)230kg
Length(stowed) 14.1m
Width(axle retracted) 2.49m
Width(axle extended) 3.35m
Height(stowed) 3.08m
Wheel base 3.66m
Ground clearance-center 280mm
Platform measurement(m) *2.44*0.91m
Turning radius-inside,axle retracted4.14m
Turning radius-outside,axle extended2.74m
Turning radius-outside,axle retracted6.56m
Turning radius-outside,axle extended5.85m
Travel speed(stowed)4.4km/h
Travel speed(raised or extended)1.1km/h
Solid tire 385/65-22.5
Swing speed0-1/3rpm
Turntable swing 360°  Continuous
Platform levellingAutomatical levelling
Platform rotation±80°
Fuel tank capacity150L
Total weight20900kg
Drive & steering type4*4*4
engineCummins QSF2.8T-C71
Rated power53kw/2200rpm
